Description

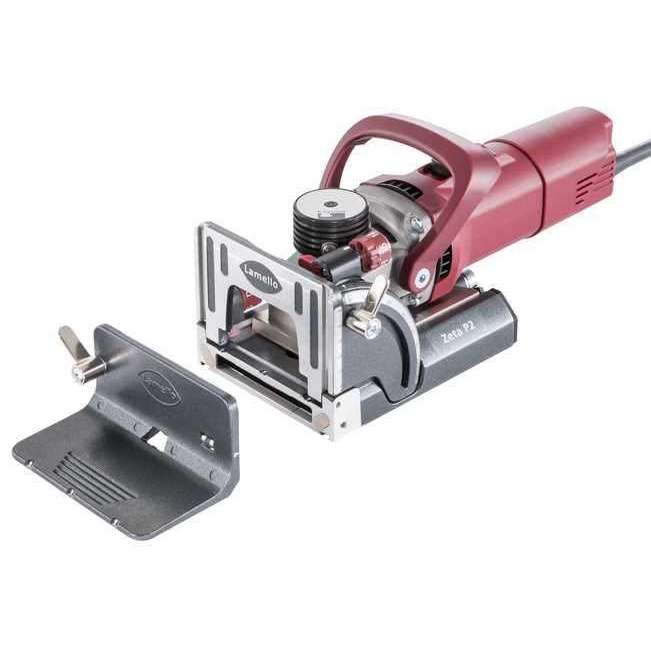

Lamello Zeta P2 Biscuit Joiner: Precision, Innovation, and Versatility

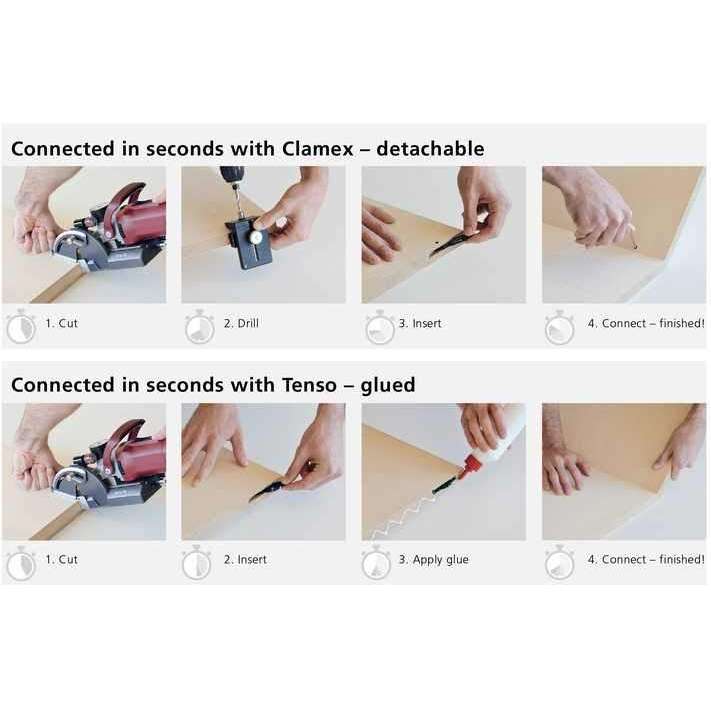

The Lamello Zeta P2 Biscuit Joiner is the ultimate tool for professionals seeking precision, efficiency, and versatility. Designed for the innovative P-System anchorage, it’s ideal for connecting wood materials with the Clamex, Tenso, and Divario P-connectors, delivering strong and secure joints effortlessly.
Key Features of the Zeta P2
-
P-System Vertical Mechanical Drive: Automatically creates profile grooves for P-System connectors during cutting.
-
P-System Depth Adjuster: Tool-free adjustment for 5 cutting depths (10, 12, 14, 15, 18mm). Switch to OFF for standard 4mm groove cutting.
-
Multifunctional Stop Square: Provides vertical stability and adjustable groove positioning (0-50mm).
-
Swiveling Front Stop: Ensures reliable cuts with a centered cutter between application surfaces.
What’s Included
- Zeta P2 Biscuit Joiner
- P-System Drill Jig and Kit
- Carbide or Diamond Tipped P-System Cutter
- Stop Square, Angle Disc, Suction Stubs (23mm & 36mm)
- 2mm & 4mm Spacers
- Tool Set and Systainer Carrying Case
Benefits
-
Fast & Precise: Cuts identical grooves on both workpieces without depth adjustments.
-
Efficient Connection: Innovative profile groove technology eliminates additional fastening materials.
-
Versatility: Compatible with P-System connectors, wooden biscuits, and 4mm fittings.
-
On-Site Flexibility: Quick adjustments for assembly and installation tasks.
Applications
- Perfect for woodworking shops, furniture and kitchen manufacturing, custom millwork, and exhibit construction.
- Ideal for use with wood panels, composite materials, HPL, and solid surfaces.
- Enables fast gluing, clamping, and assembly of permanent or detachable connections.
The Lamello Zeta P2 Biscuit Joiner combines cutting-edge technology with unmatched versatility, making it the go-to tool for woodworkers and manufacturers seeking reliable and efficient solutions.
ADVANTAGES
Lamello Zeta P2 Features: Precision and Versatility
P-System Vertical Mechanical Drive
Powered by highly precise rotary parts, the vertical mechanical drive creates an eddy current to automate the stroke movement, ensuring precision and reliability.
P-System Anchorage
Enjoy tool-free anchoring of connectors without the need for adhesives or screws, simplifying assembly and reducing labor time.
P-System Depth Adjuster
Quickly set cutting depths for P-System joining elements at 10, 12, 14, 15, or 18mm with an easy rotation of the depth adjuster.
Wood Elements Compatibility
Switch to standard wooden biscuits by turning the depth adjuster to OFF, disabling the vertical mechanical drive. Replace the 7mm P-System cutter with the 4mm groove cutter for traditional applications.

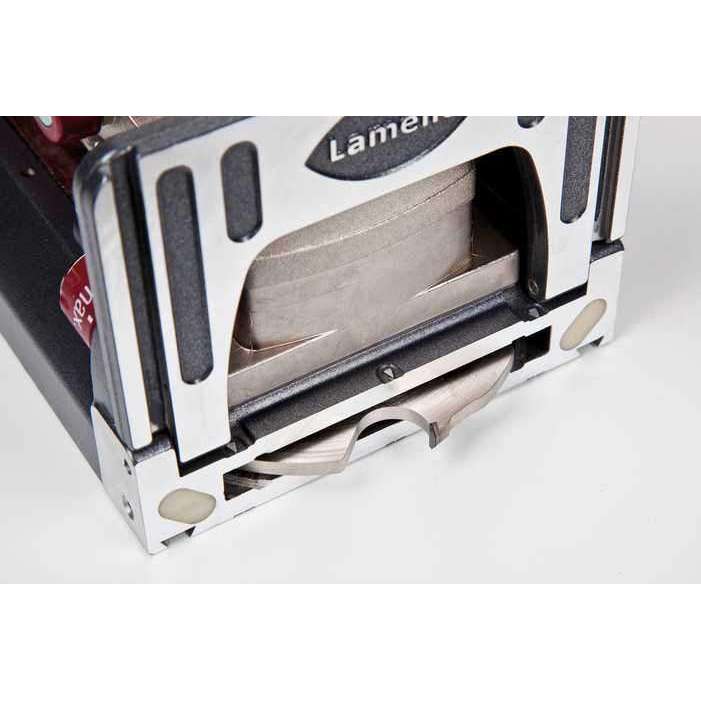

Swiveling Front Stop with Fixed Pivot Point
Achieve accurate, reliable joins with a cutter centered between two application surfaces, ensuring perfect alignment.

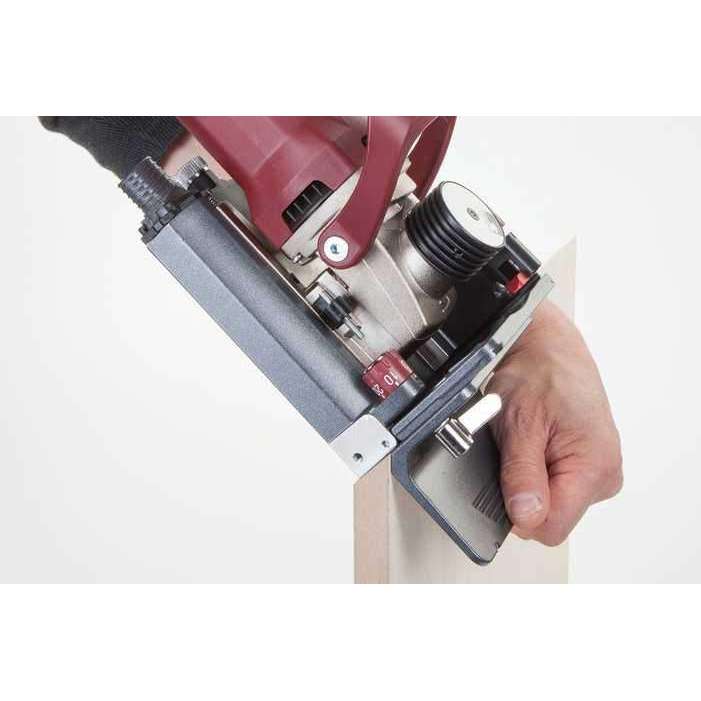

Multifunctional Stop Square
Enhance vertical stability with a larger contact area and adjust groove positioning from 0 to 50mm for custom applications.
FUNCTIONALITY
Lamello Zeta P2 Biscuit Joiner: Exceptional Functionality
The Zeta P2 features an integrated vertical mechanical drive on its cutting spindle, making it the centerpiece of this advanced profile biscuit joiner.
Automatic Profile Groove Creation

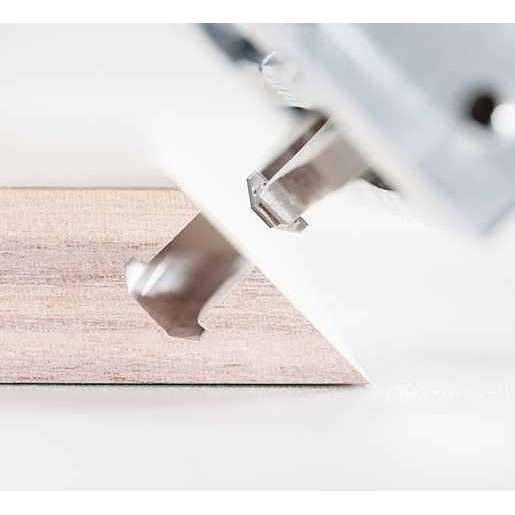

The vertical movement for the profile groove is triggered automatically upon reaching the maximum cutting depth, completing the process in just a fraction of a second. During cutting, the drive performs a precise vertical motion to form the profile groove effortlessly.
Dual Functionality

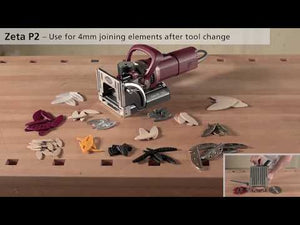

Switch between P-System grooves and standard biscuit joinery with ease. Simply deactivate the profile groove function and replace the cutter with a 4mm blade to use the Zeta P2 for traditional biscuits.
Adjustable P-System Depth
The P-System depth adjuster allows you to set varying installation depths (10, 12, 14, 15, or 18mm) without the need for a cutter change, enhancing efficiency and versatility.
The Lamello Zeta P2 delivers unmatched precision, speed, and flexibility, making it the ultimate solution for professional wood joinery.
Technical Data
Technical Data
Power: 800 W
Voltage: 120 V
Speed: 9,000
Cutter: Carbide-tipped profile groove cutter / Diamond-tipped profile groove cutter Ø 100 x 7 x 22 mm
Teeth: 3
Max. cutting depth: 20 mm
Weight: 8.2 lbs.
