Description
Industrial-Grade Sanding for Precision and Efficiency

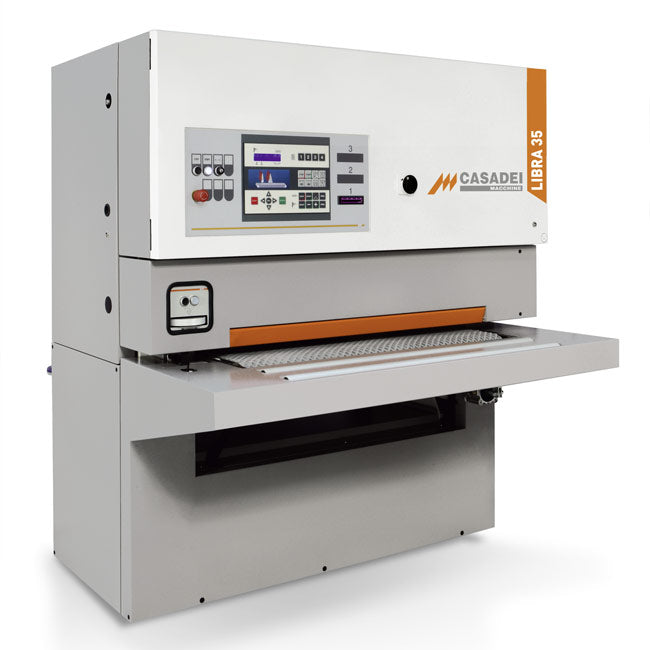

The Casadei Libra 35 is a high-performance wide belt sander designed for precision calibration and fine sanding of solid wood, veneered panels, and composite materials. Engineered with robust construction, advanced sanding technology, and user-friendly controls, this machine is ideal for cabinet shops, furniture manufacturers, and millwork operations that require consistent surface quality and efficient material removal.
Upgrade Your Sanding Capabilities Today!
The Casadei Libra 35 Wide Belt Sander is the perfect solution for precision sanding, high production efficiency, and superior surface quality. Contact us today for a custom quote and expert consultation!
Features
Key Features
-
Working Width: 950 mm or 1100 mm, accommodating a variety of panel sizes.
-
Working Height Range: 4 to 170 mm, allowing for versatile material processing.
-
Sanding Belt Dimensions: 970 mm x 1900 mm (950 mm version) / 1115 mm x 1900 mm (1100 mm version).
-
Feed Speeds: Dual speeds at 4.5 and 9 m/min for optimal control over the sanding process.
-
Main Motor Power: 11 kW (15 HP) with optional upgrades to 15 kW (20 HP) or 18.5 kW (25 HP).
-
Three Available Platen Versions:
-

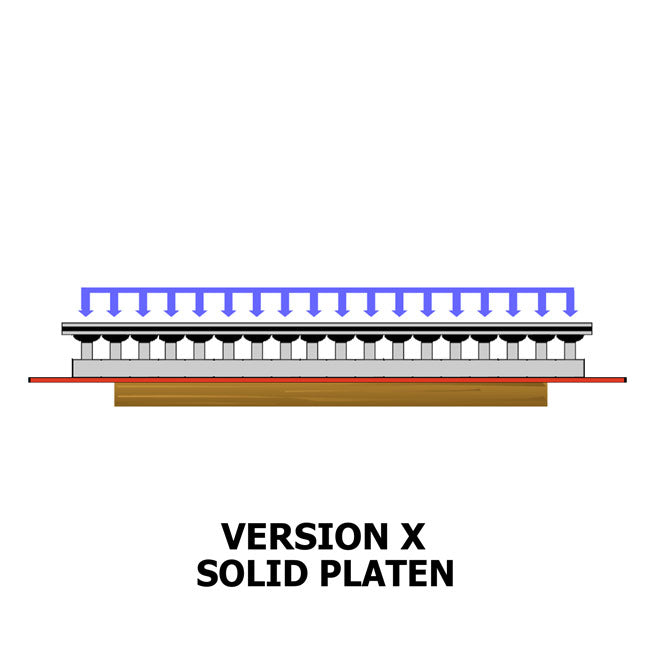

Version X: Solid platen for standard sanding applications.
-

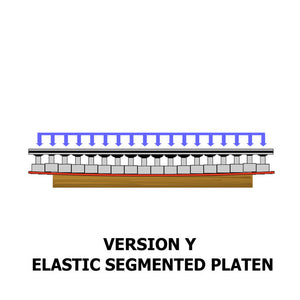

Version Y: Elastic segmented platen for improved surface adaptability.
-

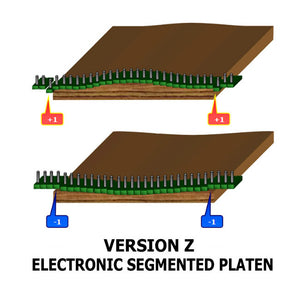

Version Z: Electronic segmented platen for precision sanding with sector activation.
-

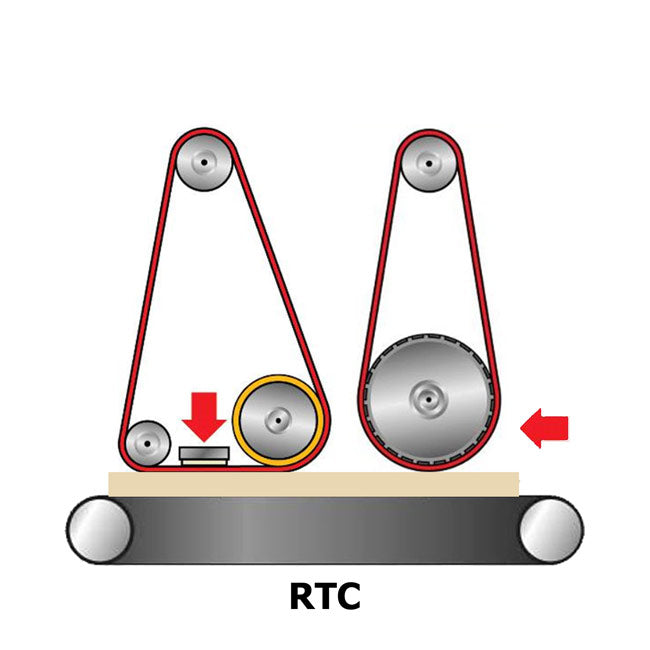

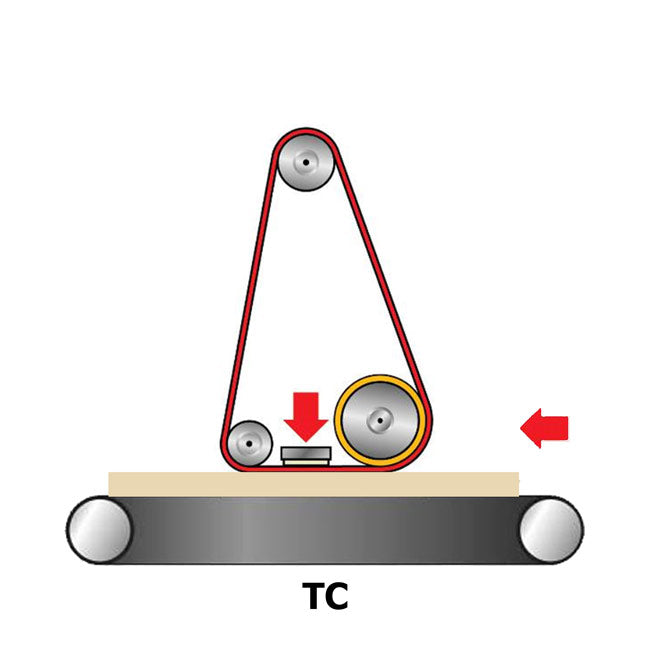

Combination Sanding Unit:
- Grooved steel contact roller (Ø 120 mm) with pneumatic pressure adjustment.
- Platen with felt insert and graphite covering for precision finishing.
-
Electronic Belt Oscillation Control: Ensures proper belt tracking and consistent sanding results.
-
Motorized Table Height Adjustment: Includes an electronic digital readout for precise thickness control.
-
Natural Rubber Feed Conveyor (60 Sh): Ensures smooth and stable material transport through the machine.
-
Heavy-Duty Frame Construction: Provides rigidity and vibration reduction for maximum precision.
Advantages
✔ Versatile Performance: Suitable for both rough calibration and fine sanding of various materials.
✔ User-Friendly Controls: Intuitive control panel simplifies operation and adjustments.
✔ Industrial Durability: Heavy-duty design ensures long-lasting performance in demanding environments.
✔ Consistent Finishing Quality: High-precision sanding units deliver uniform material removal and superior surface smoothness.
✔ Compact and Efficient: Optimized footprint to maximize workshop productivity.
Benefits
Business Benefits
-
Enhance Surface Quality: Achieve smooth, uniform finishes that meet high-quality standards for painting, staining, or veneering.
-
Increase Productivity: High-efficiency sanding reduces processing times and labor costs.
-
Reduce Waste: Precision sanding minimizes material loss and enhances yield.
-
Customizable Configurations: A range of optional features and upgrades allow you to tailor the machine to specific applications.
Technical Data
Technical Data
-
Working Width: 950 mm or 1100 mm
-
Minimum Working Height: 4 mm
-
Maximum Working Height: 170 mm
-
Sanding Belt Width: 970 mm (950 mm version) / 1115 mm (1100 mm version)
-
Sanding Belt Length: 1900 mm
-
Feed Speeds: 4.5 and 9 m/min
-
Feeding Motor Power: 0.33/0.55 kW (0.4/0.7 HP)
-
Main Motor Power: 11 kW (15 HP), optional 15 kW (20 HP) or 18.5 kW (25 HP)
-
Machine Dimensions (L x W x H): Varies by configuration
-
Weight: Dependent on selected model and options
Options
Popular Optional Features
-
FOX 500 KTR Electronic Control: Automates platen and roller adjustments for optimized sanding sequences.
-
SmartControl S: Advanced touch-screen control system for simplified operation, programmable settings, and real-time monitoring of sanding parameters.
-
Workpiece Optimizer System: Uses LED guidance for optimal workpiece positioning, reducing belt wear and increasing efficiency.
