Description
Heavy-Duty Sanding for High-Precision Industrial Applications
The Casadei Libra 65 is an industrial wide belt sander designed for demanding woodworking applications that require high-precision calibration, fine sanding, and finishing. Available in 2-head and 3-head configurations, the Libra 65 is built for continuous production, high feed rates, and premium surface quality. Its reinforced steel structure, advanced sanding units, and intelligent control systems ensure maximum efficiency, reduced material waste, and superior surface results.
Upgrade Your Sanding Capabilities Today!
The Casadei Libra 65 Wide Belt Sander is the ultimate solution for high-volume industrial sanding, premium finishing, and maximum efficiency. Contact us today to discover the best configuration for your production needs!
Features
Key Features
-
Available Configurations:
-

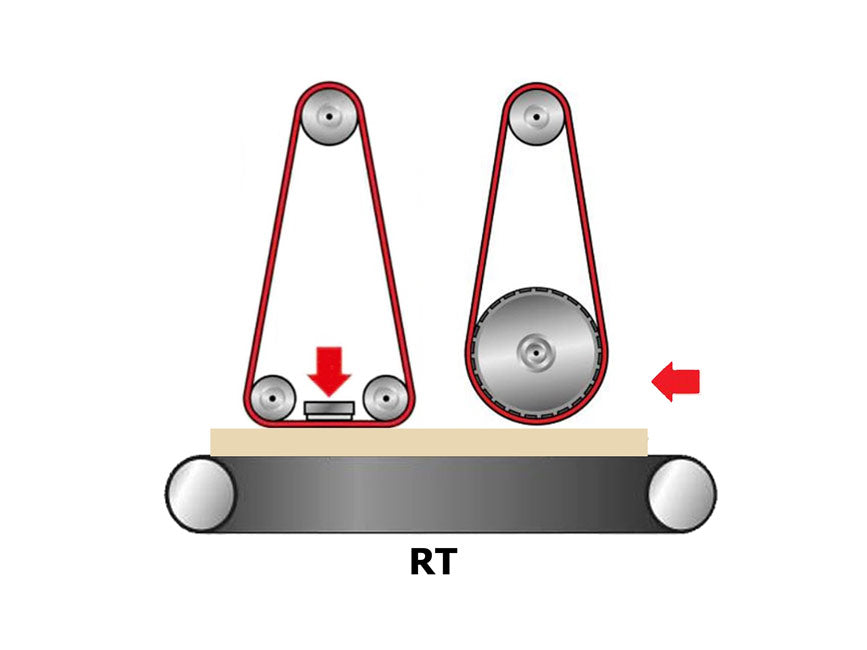

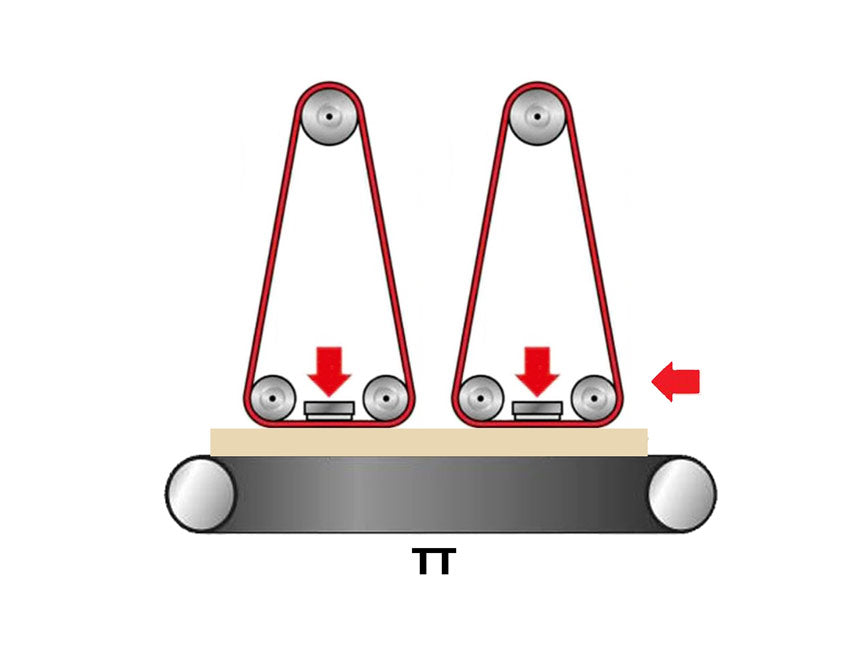

Libra 65/2: Two operating heads for calibration and fine sanding.
-

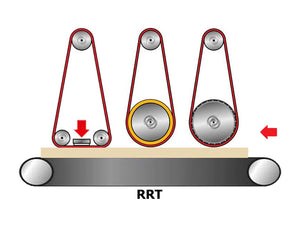

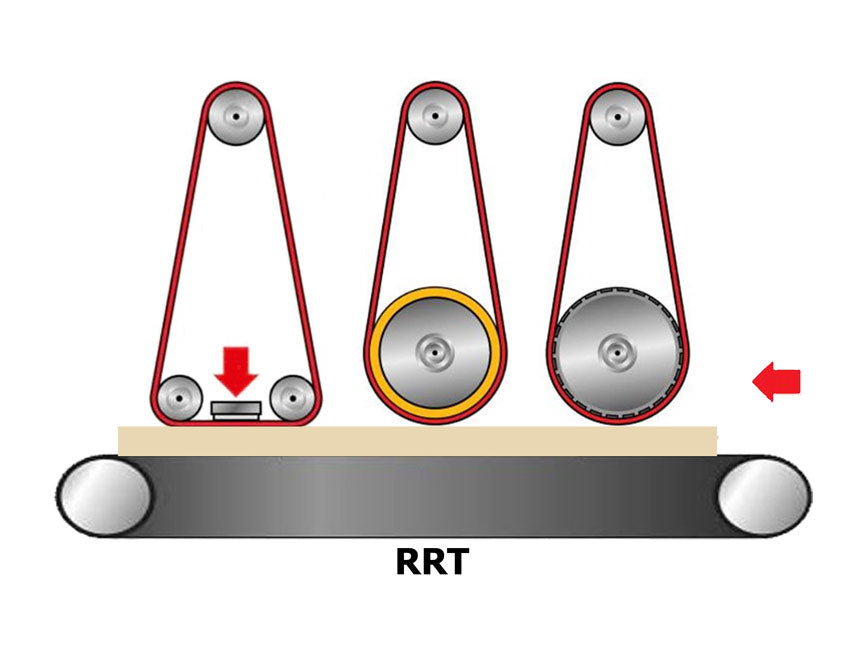

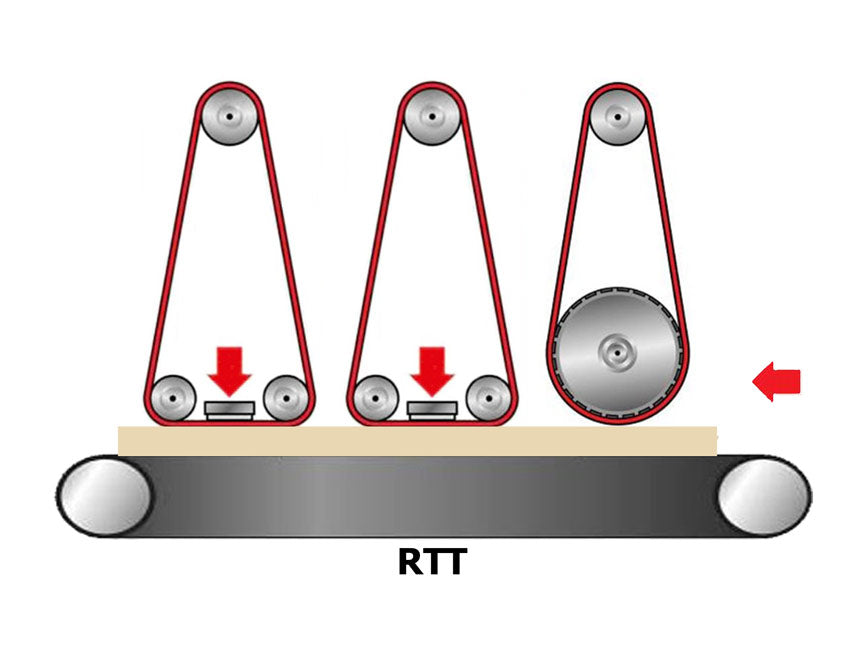

Libra 65/3: Three operating heads for advanced multi-step sanding and finishing.
-
Working Widths: 1100 mm or 1350 mm for large panel processing.
-
Working Height Range: 4 to 170 mm for flexible material applications.
-
Sanding Belt Dimensions: 1115 mm x 2620 mm (1100 mm version) / 1370 mm x 2620 mm (1350 mm version).
-
Main Motor Power: 18.5 kW (25 HP) standard, with optional 22 kW (30 HP) for high-power applications.
-
Heavy-Duty Feed Conveyor: Natural rubber with automatic centering for smooth material transport.
-

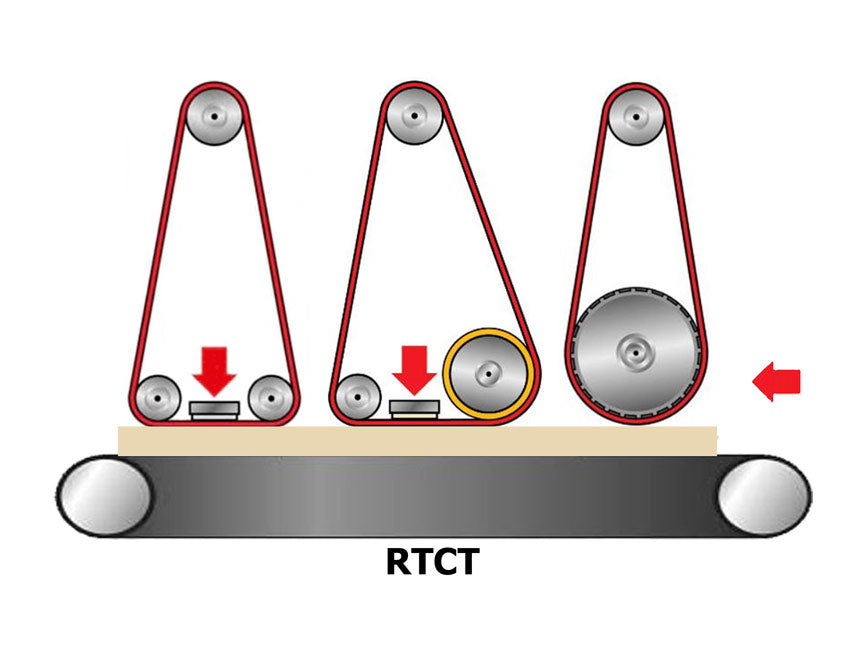

Combination Sanding Unit:
-
One 250 mm rubber-covered 45 Shore roller for effective material removal.
-
Platen covered with graphite cloth available in four versions:
-
Version X: Solid platen for standard sanding applications.
-
Version Y: Elastic segmented platen for improved surface adaptability.
-
Version Z: Electronic segmented platen for precision sanding with sector activation.
-
Version Z Super: Advanced electronic segmented platen for superior finishing control.
-
Electronic Belt Oscillation Control: Maintains accurate belt tracking for even sanding results.
-
Motorized Table Height Adjustment: Electronic digital readout ensures precise thickness control.
-
Pneumatic Platen Activation: Allows controlled pressure for optimal sanding performance.
-
Industrial-Grade Steel Frame: Ensures stability, durability, and reduced vibration.
-
Optional Constant Pass Line: Fixes the working table at 900 mm from the floor, enabling seamless integration into production lines.
-
Planer Unit (Available Upon Request): Replaces the calibration roller in the first position for heavy material removal and precise thickness control.
Advantages
✔ Optimized for High-Volume Production: Reduces sanding time while maintaining outstanding surface quality.
✔ Versatile Performance: Capable of rough calibration, fine sanding, and high-quality finishing.
✔ User-Friendly Controls: Smart interfaces and automation features streamline machine operation.
✔ Durability & Reliability: Heavy-duty components ensure long-lasting performance in continuous production environments.
✔ Precision Surface Finishing: Multi-head sanding units and segmented platen deliver a flawless, professional finish.
Benefits
Business Benefits
-
Achieve Premium Surface Quality: Smooth and uniform surfaces ready for painting, staining, or veneering.
-
Maximize Productivity: High-speed processing and powerful motor options reduce sanding time.
-
Lower Operating Costs: Energy-efficient motors and advanced control systems optimize power usage.
-
Adaptable to Your Needs: Multiple configuration and optional features allow customization for specific applications.
Technical Data
Technical Data
-
Working Width: 1100 mm or 1350 mm
-
Minimum Working Height: 4 mm
-
Maximum Working Height: 170 mm
-
Sanding Belt Width: 1115 mm (1100 mm version) / 1370 mm (1350 mm version)
-
Sanding Belt Length: 2620 mm
-
Feed Speeds: 4.5 and 9 m/min
-
Feeding Motor Power: 0.45/0.8 kW (0.6/1.1 HP)
-
Main Motor Power: 18.5 kW (25 HP), optional 22 kW (30 HP)
-
Machine Dimensions (L x W x H): Varies by configuration
-
Weight: Dependent on selected model and options
Options
Optional Features
-
SmartControl S: 10” touchscreen interface with Easy2Go Sand for simplified operation and programmable sanding settings.
-
Platen Options: Available in four versions to suit different sanding applications:
-
Version X: Solid platen for standard sanding applications.
-
Version Y: Elastic segmented platen for improved surface adaptability.
-
Version Z: Electronic segmented platen for precision sanding with sector activation.
-
Version Z Super: Advanced electronic segmented platen for superior finishing control.
-
FOX 500 KTR Electronic Control: Automates platen and roller adjustments for optimized sanding sequences.
-
Workpiece Optimizer System: LED guidance system for improved belt wear and efficient material feeding.
-
Reversible Belt Rotation: Allows forward and reverse sanding for extended belt life and enhanced finishing results.
-
Constant Pass Line: Fixes the working table at 900 mm from the floor, ensuring seamless integration into automated production lines.
-
Planer Unit (Available Upon Request): Replaces the calibration roller in the first position for heavy material removal and precise thickness control.
