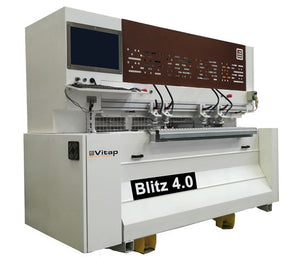

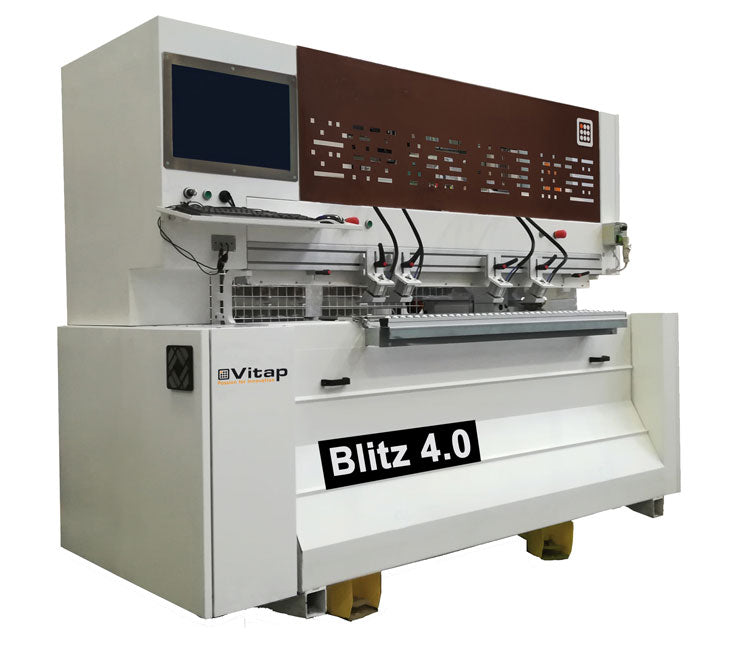

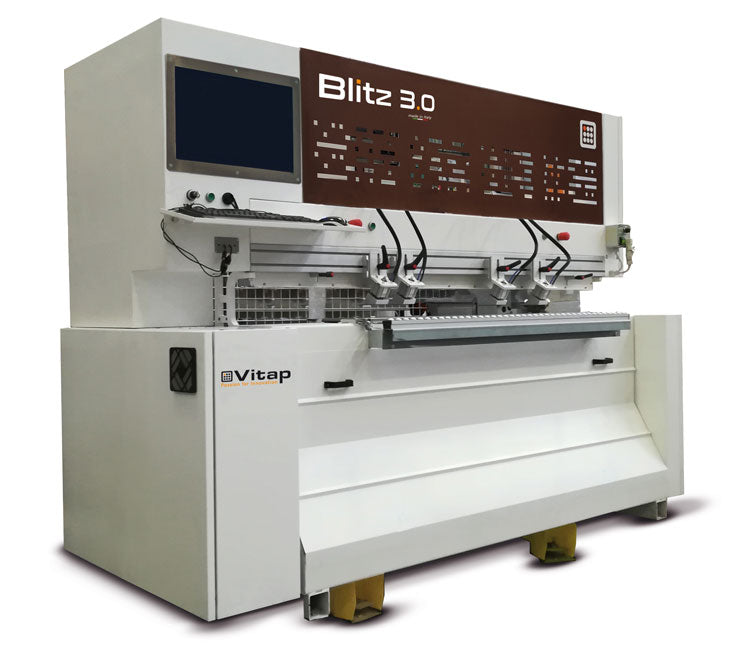

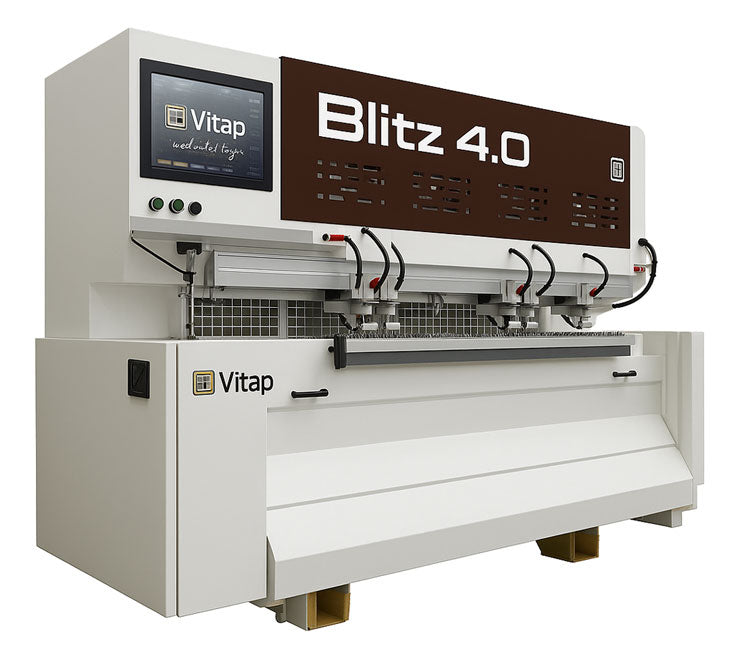

Vitap Blitz 3.0 & Blitz 4.0 CNC Drilling, Gluing, and Dowel Inserting Machines

Description

Precision CNC Drilling and Dowel Insertion for Woodworking & Assembly

The Vitap Blitz 3.0 and Blitz 4.0 are advanced CNC drilling, gluing, and dowel insertion machines, designed for high-speed and accurate processing of cabinetry, furniture, and panel assembly. These machines streamline horizontal and vertical drilling operations while ensuring perfectly aligned glue and dowel insertion for strong, reliable joints. The Blitz 4.0 model enhances functionality with an integrated router, making it the ideal solution for processing Lamello connectors, pocket hole joinery, and other innovative fittings.

Optimize Your Assembly Process with the Vitap Blitz 3.0 & 4.0!

The Vitap Blitz series delivers automated drilling, dowel insertion, and routing capabilities to revolutionize panel assembly and joinery production. Contact us today to learn how these machines can enhance your efficiency and expand your capabilities!

Features

Key Features

• High-Precision CNC Drilling & Dowel Insertion:
  • Three horizontal & three vertical drilling spindles for multi-sided processing.
  • Glue and dowel insertion system ensures perfectly bonded joints.
• Automated Workpiece Handling:
  • 4 pneumatic clamps secure the panel for precise machining.

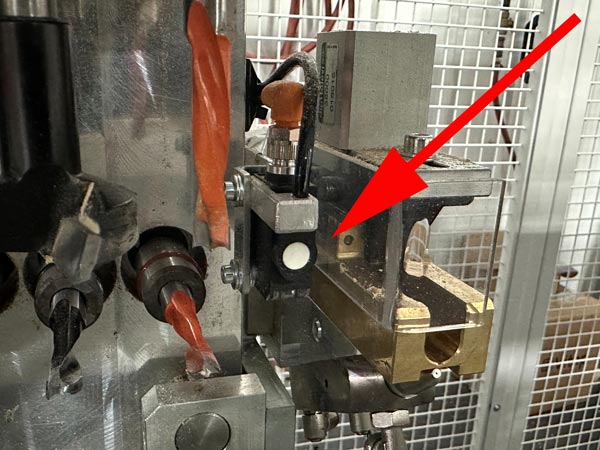

  • Laser sensor automatically detects panel length and selects the correct program.

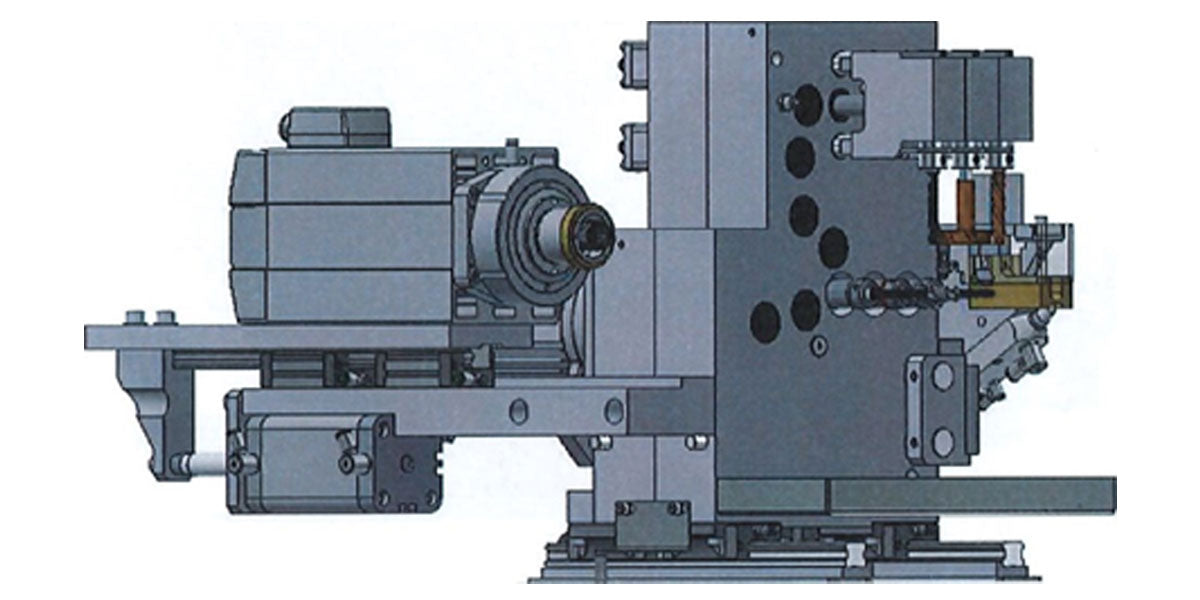

• Integrated Router Spindle (Blitz 4.0 Only):
  • 7.25 HP HSK C40 electrospindle (5.4 kW @ 24,000 RPM).
  • Enables routing for Lamello connectors, pocket holes, and custom grooves.
• Efficient Gluing System:
  • Low-pressure glue pump (1:1 ratio) for accurate adhesive application.
  • Integrated glue injector cleaning system for reduced maintenance.
• TPACAD / PROMAX Software:
  • User-friendly touchscreen interface for fast setup and operation.
  • Supports DXF file import and barcode scanning (optional).
• Compact & Space-Saving Design:
  • Fits into small workshops and high-production environments alike.

Advantages

✔ Fast & Reliable Assembly: Reduces manual labor and assembly time.
✔ Blitz 4.0 Router Upgrade: Processes Lamello fittings, biscuit joints, and pocket holes.
✔ Precise Glue & Dowel Placement: Ensures stronger, more durable joints.
✔ User-Friendly Programming: Intuitive software simplifies operation & job recall.
✔ Compact & Efficient: Perfect for small and high-volume production facilities.

Benefits

Business Benefits

• Improve Production Speed: Fully CNC-controlled process reduces manual work.
• Enhance Joint Quality: Perfect glue and dowel placement for stronger connections.

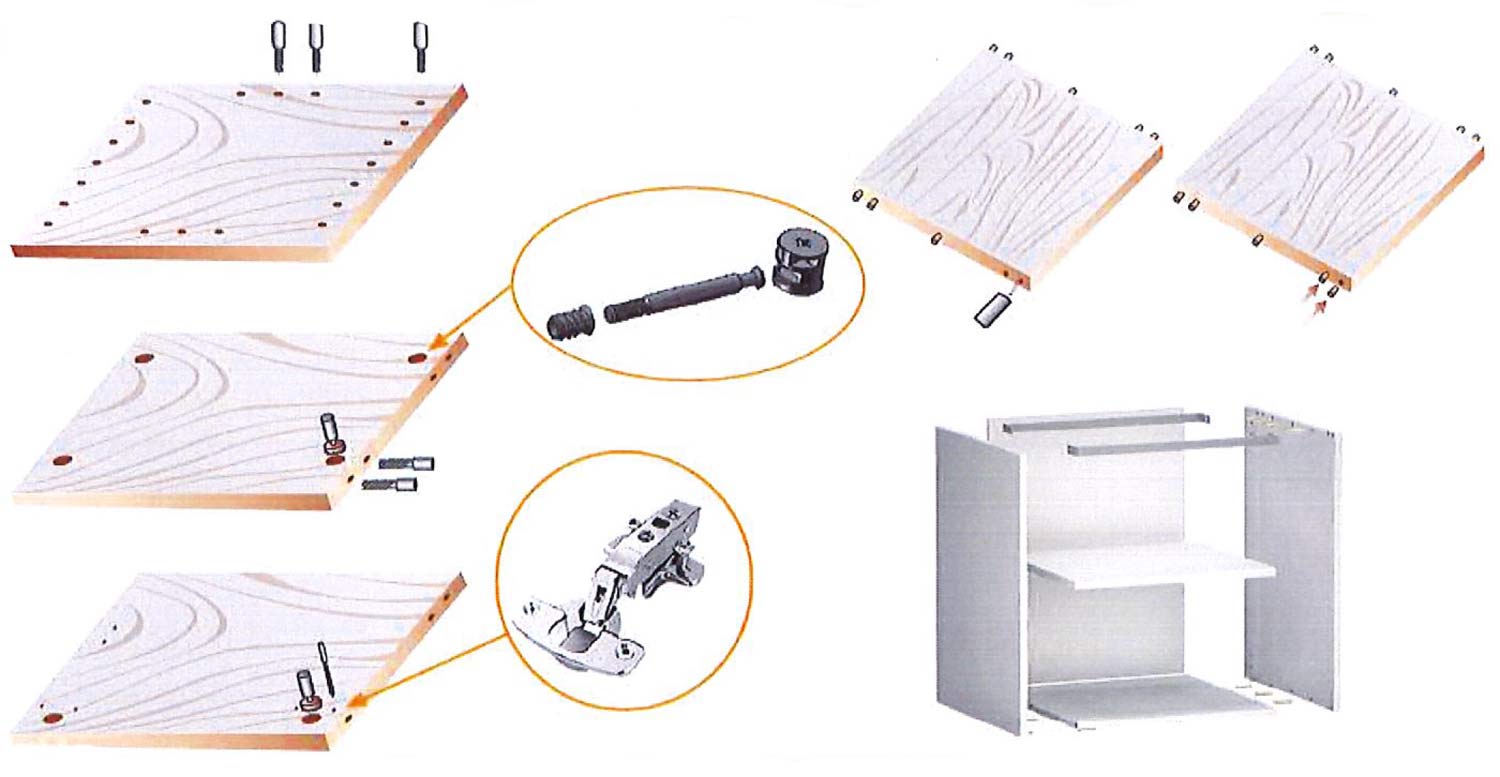

• Expand Processing Capabilities (Blitz 4.0): Route for Lamello, Tenso, Clamex, and other connectors.
• Reduce Waste & Material Costs: Optimized drilling and insertion reduce errors.

Technical Data

Technical Data

• Maximum Workpiece Dimensions: X 1300 mm, Y 50 mm, Z 50 mm
• Drilling Spindles:
  • 3 horizontal, 3 vertical (independent, 3,500 RPM)
• Router (Blitz 4.0 Only):
  • 7.25 HP HSK C40 (5.4 kW @ 24,000 RPM)
• Glue System: Low-pressure glue pump (1:1 ratio)
• Dowel Size Compatibility: 6x25 mm to 10x40 mm
• Machine Dimensions: Blitz 3.0 - 2500x1300x1900 mm, Blitz 4.0 - 2600x1300x1900 mm
• Machine Weight: 850 kg
• Electrical Requirements: 230V / 3 Phase / 60Hz

Options

Optional Features

• Barcode Reader with Software: Automates job recall and panel tracking.

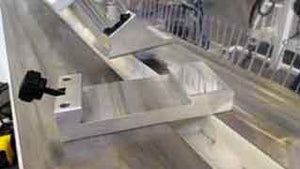

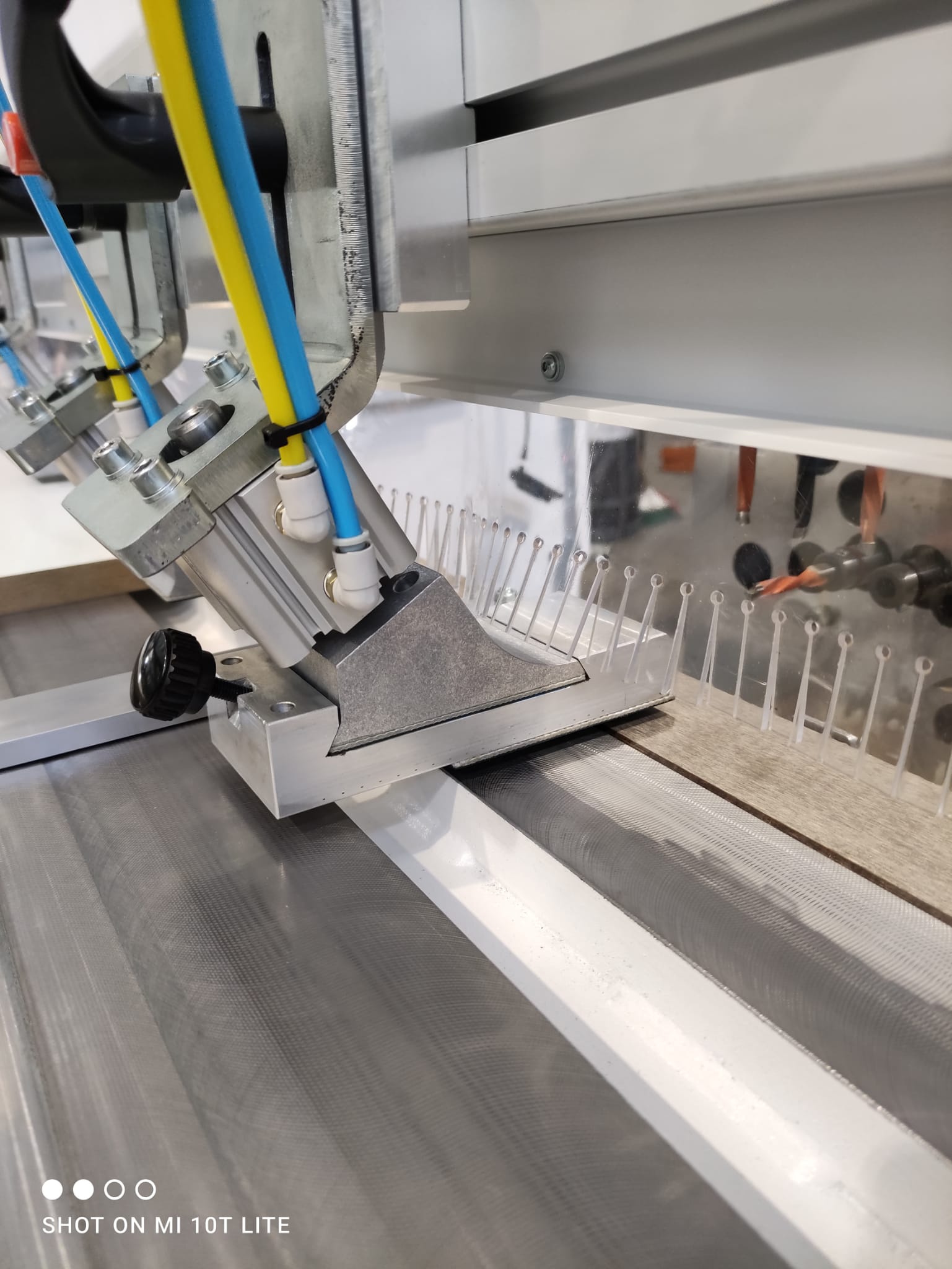

• Clamp Pad Extension Kit: Improves workholding for smaller panels.
• 16-Point Automatic Greasing Pump (Blitz 4.0): Reduces machine wear.
• Voltage Stabilizer: Ensures consistent CNC operation.
• Additional Router Bits (Blitz 4.0): Custom cutting tools for different joinery applications.
