Description
The N.R. Murphy HE and C Series Pulse Jet Dust Collectors are designed for continuous-duty, high-efficiency dust collection, ensuring a cleaner, safer, and more productive work environment. These units utilize a pulse-jet self-cleaning system, enabling uninterrupted operation—ideal for facilities requiring 24/7 dust control.

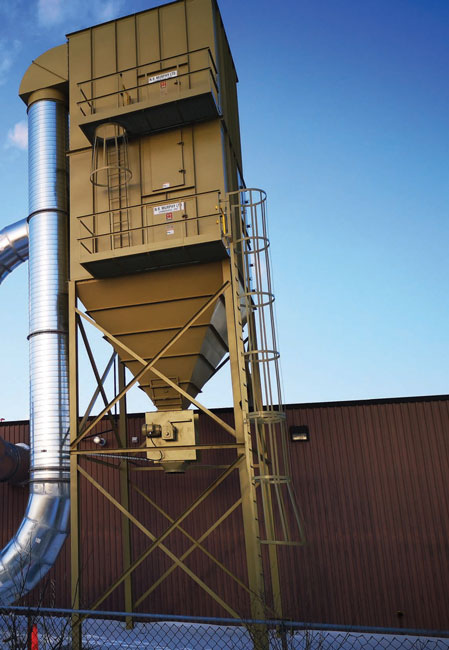

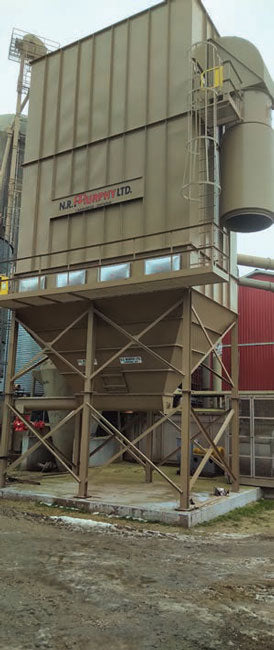

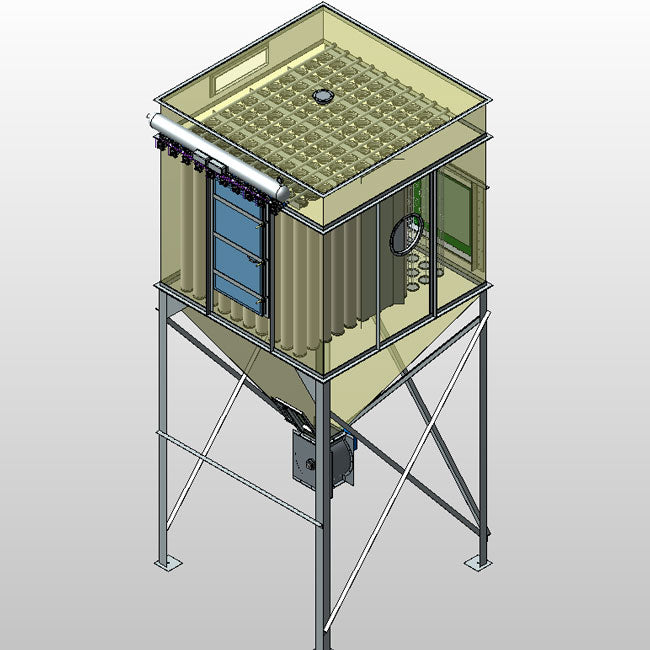

- The HE Series is equipped with tubular filter bags, offering high-capacity dust capture and filtration for woodworking, metalworking, and industrial applications.

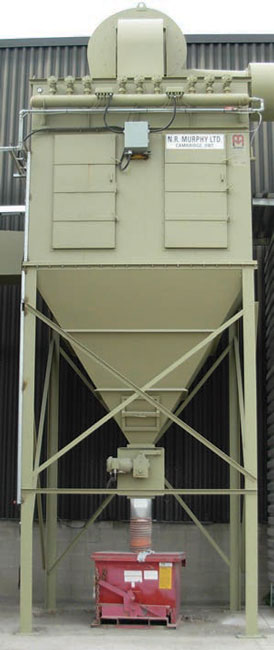

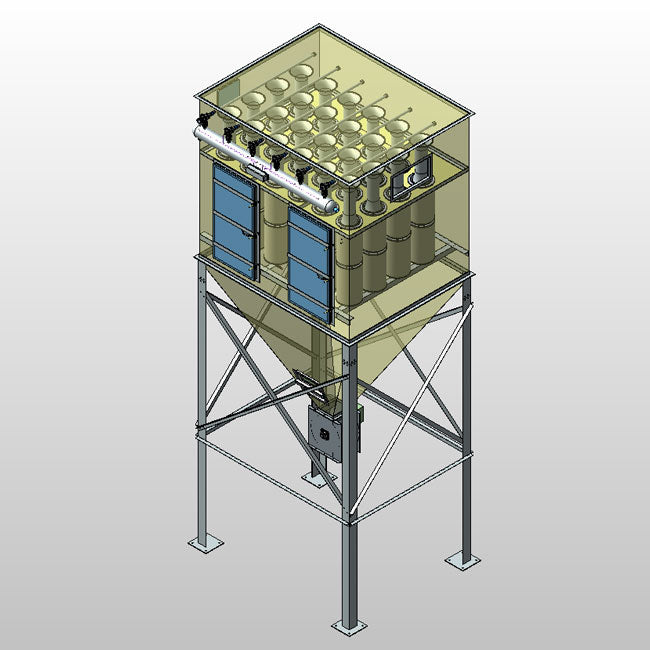

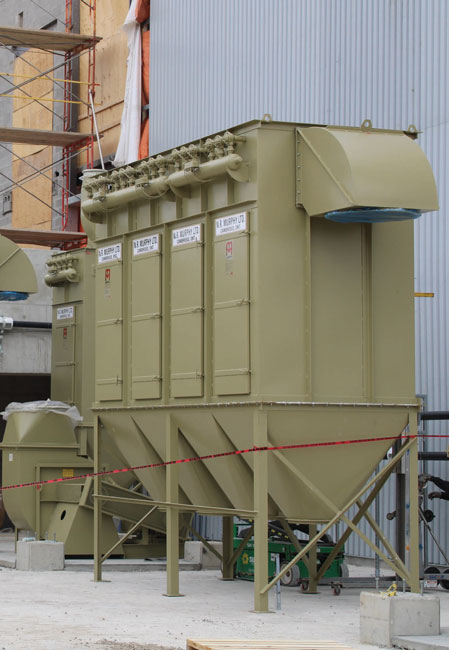

- The C Series features compact cartridge-style filters, designed for fine particulate collection, including smoke, fumes, and free-flowing dust.
Both models are highly customizable, with options for hopper storage, rotary airlocks, screw conveyors, and bin vent configurations, making them adaptable for any production environment.
Why Choose N.R. Murphy HE & C Pulse Jet Dust Collectors?
The N.R. Murphy Pulse Jet Dust Collection Systems (HE & C Series) are engineered for industrial-grade performance, offering continuous-duty operation, high-efficiency filtration, and customizable configurations. Whether your facility requires bag or cartridge filters, modular expansion, or specialized discharge options, these systems deliver unparalleled dust control and air quality management.
✅ Industry-Leading Design – Manufactured by N.R. Murphy, a trusted leader in dust collection technology.
✅ Reliable & Durable – Heavy-duty construction ensures longevity and superior performance.
✅ Maximum Airflow & Filtration Efficiency – Optimized for industrial applications, including woodworking, metal grinding, and fine dust control.
✅ Customizable for Any Facility – Multiple model options and configurations allow businesses to tailor their dust collection system to their exact needs.
Upgrade to an N.R. Murphy HE or C Series Dust Collector today and experience the next level of industrial dust control!
Features
Key Features
✅ Advanced Pulse Jet Cleaning System – Uses compressed air pulses to continuously clean filters, maintaining peak suction power and efficiency.
✅ High-Efficiency Filtration – The HE Series uses tubular filter bags, while the C Series features pleated cartridge filters, both optimized for fine dust and particulate collection.
✅ Continuous Duty Design – Engineered for 24/7 operation with no downtime for filter maintenance.
✅ Customizable Modular Design – Available in multiple sizes, airflow capacities, and configurations to fit your specific dust collection needs.
✅ Heavy-Duty Construction – Satin-coated steel housing with zinc-coated hardware ensures long-lasting durability.
✅ Preassembled for Easy Installation – Ships fully assembled, reducing setup time and minimizing installation costs.
✅ Automated Material Discharge – Works with drums, rotary valves, hoppers, or direct-to-silo systems for seamless dust disposal.
✅ Meets OSHA & NFPA Compliance Standards – Designed for safe industrial dust collection, reducing fire hazards and airborne contaminants.
Advantages
Advantages
✅ Uninterrupted Operation – Self-cleaning pulse jet system eliminates downtime, keeping production lines moving.
✅ Maximizes Airflow & Suction Power – Maintains consistent performance by automatically clearing filter media.
✅ Compact & Space-Saving Design – The C Series offers a smaller footprint, making it ideal for space-constrained facilities.
✅ Versatile Application Range – Works in woodworking, metal fabrication, composites, and general manufacturing.
✅ Reduces Maintenance Costs – Durable filters and automated cleaning extend equipment lifespan and reduce labor costs.
Benefits
Benefits
🔹 Enhanced Workplace Safety – Effectively removes airborne dust, preventing respiratory hazards and equipment contamination.
🔹 Higher Productivity – Eliminates manual filter cleaning, allowing operators to focus on production tasks.
🔹 Energy-Efficient Design – Uses optimized airflow and efficient filtration, lowering operational costs.
🔹 Scalable for Growing Businesses – Modular expansion options allow systems to grow with production demands.
🔹 Customizable for Specific Needs – Available in various filter configurations, discharge setups, and material handling options.
Technical Data
Technical Specifications
| Model |
Filtration Type |
Airflow Capacity (CFM) |
Filter Cleaning Method |
Dust Discharge Options |
Construction |
| HE Series |
Tubular Filter Bags |
2,800 – 38,000+ |
Pulse Jet Compressed Air |
Drums, Rotary Valves, Hoppers |
Satin-Coated Steel |
| C Series |
Pleated Cartridge Filters |
375 – 38,000+ |
Pulse Jet Compressed Air |
Drums, Rotary Valves, Hoppers |
Satin-Coated Steel |
HE Series Model Capacities
| Model |
Airflow Capacity (CFM) |
Inlet Size |
Filter Type |
Max Storage Capacity |
| HEC-25-S |
2,800 |
8” x 8” |
Filter Bags |
42” x 18” |
| HEC-36-S |
5,000 |
10” x 10” |
Filter Bags |
42” x 18” |
| HEC-64-S |
9,000 |
10” x 10” |
Filter Bags |
42” x 18” |
| HEC-100-S |
15,000 |
12” x 12” |
Filter Bags |
42” x 24” |
| HEC-144-S |
21,000 |
12” x 12” |
Filter Bags |
42” x 24” |
| HEC-196-S |
29,000 |
14” x 14” |
Filter Bags |
42” x 24” |
| HEC-256-S |
38,000 |
16” x 16” |
Filter Bags |
42” x 30” |
C Series Model Capacities
| Model |
Airflow Capacity (CFM) |
Filter Area (sq. ft.) |
Weight (lbs.) |
Storage Capacity |
| CMT-4 |
375 |
150 |
175 |
0.5 cu. ft. |
| CMT-5 |
771 |
300 |
200 |
0.5 cu. ft. |
| CMT-7 |
1,443 |
600 |
400 |
1.0 cu. ft. |
Options
Available Options
-
Explosion-Proof Design – For combustible dust applications, ensuring compliance with NFPA standards.
-
High-Efficiency Fans – Optimized for greater suction power and energy savings.
-
Silencers & Mufflers – Reduces operating noise levels, improving shop environment.
-
Alternative Discharge Systems – Options include briquetting systems, dumpsters, or direct-to-trailer discharge.
-
Spark Detection & Suppression Systems – Enhances fire prevention and system safety.
-
Access Platforms & Ladders – Provides easy filter maintenance and system monitoring.
