Vitap K3 CNC Machining Center

Description

Advanced CNC Machining with Integrated Cabinet Software

The Vitap K3 is an innovative CNC machining center designed for high-efficiency panel processing, cabinetry manufacturing, and furniture production. Built on the foundation of the Vitap K2, the K3 takes automation and workflow integration to the next level with onboard cabinet software, allowing direct cabinet design and CNC execution. Featuring Vitap’s patented Bar Nesting System, this machine eliminates horizontal drilling limitations found in traditional nesting machines, providing unmatched flexibility, precision, and automation. Additionally, the K3 is available in customizable color options, making it the perfect fit for any shop environment.

Optimize Your Production with the Vitap K3!

The Vitap K3 CNC Machining Center combines advanced machining technology, built-in cabinet software, and customizable aesthetics for superior production efficiency. Contact us today to learn how the K3 can revolutionize your manufacturing process!

Features

Key Features

• Integrated Cabinet Software:
  • Pre-installed 3D cabinet design software for seamless design-to-production workflow.
  • Instant file transmission for faster job execution.
• Vitap Bar Nesting System:
  • Overcomes traditional horizontal drilling limitations, optimizing nesting efficiency.
  • Improves flexibility in panel processing and part nesting.
• DDT (Double Dynamic Transport) System:
  • Dual-clamp gripper system ensures secure and stable workpiece handling.
  • Smooth, high-speed X-axis movement for optimized performance.
• Boring and Routing Capabilities:
  • 12 vertical drilling spindles for high-speed boring.
  • 4 horizontal drilling spindles (2+2 X-axis, 2+2 Y-axis).
  • 100 mm saw blade unit for precise groove cutting.
  • 5 kW ISO 30 electrospindle (optional 8 kW) for powerful routing applications.
• Automated Workpiece Handling:
  • Automatic workpiece positioning system for increased accuracy.
  • Workpiece return conveyor (optional) for continuous production flow.
• PC-Controlled Interface:
  • 22” LCD touchscreen with integrated CAD/CAM software.
  • Multitasking OS for real-time job execution while programming.
• Custom Color Options:

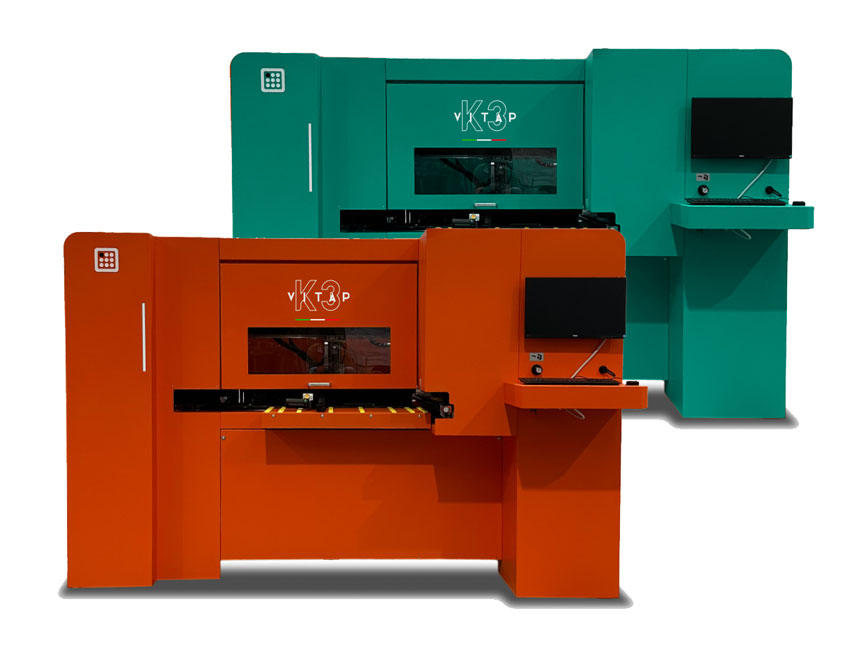

  • Available in Seafoam Green or Orange Vermilion.

Advantages

✔ Integrated Cabinet Software: Reduces programming time with built-in design-to-production tools.
✔ Enhanced Nesting Efficiency: Vitap’s patented Bar Nesting System provides superior machining accuracy.
✔ Customizable Aesthetic: Available in Seafoam Green and Orange Vermilion to match shop aesthetics.
✔ Fast & Accurate Machining: DDT system and high-speed motion control maximize efficiency.
✔ User-Friendly Interface: 22-inch touchscreen simplifies operation and workflow management.

Benefits

Business Benefits

• Reduce Production Time: Integrated software enables direct cabinet design and instant job execution.
• Improve Workflow Efficiency: Seamless CAD integration eliminates the need for external programming.
• Optimize Material Utilization: Advanced nesting features maximize panel cutting efficiency and reduce waste.
• Increase Production Capacity: Automated drilling, routing, and grooving enhance output speed.

Technical Data

Technical Data

• Maximum Workpiece Dimensions: X ∞, Y 1250 mm, Z 50 mm
• Minimum Workpiece Dimensions: X 270/400 mm*, Y 150 mm (70 mm optional), Z 3 mm
• Maximum Workpiece Weight: 80 kg
• Spindle Rotation Speed: 3600 RPM
• Saw Blade Rotation Speed: 7000 RPM
• Panel Feed Speed (X-Axis): 25 m/min
• Maximum Vertical Drilling Depth: 43 mm
• Maximum Vertical Drill Diameter: 35 mm
• Maximum Horizontal Drill Diameter: 12 mm
• Motor Power: 7 kW
• Machine Dimensions: 2900 x 1650 x 1890 mm
• Machine Weight: 1310 kg

Options

Optional Features

• 8 kW Electrospindle Upgrade: Enhances routing capabilities for more demanding applications.
• Panel Width Adjustment System: Provides precision for varying panel sizes.
• Supplementary Clamp System: Improves Free Nesting operations for non-standard workpieces.
• PC Voltage Stabilizer: Protects electronics from voltage fluctuations.
• Remote Teleservice Support: Enables internet-based diagnostics and troubleshooting.
