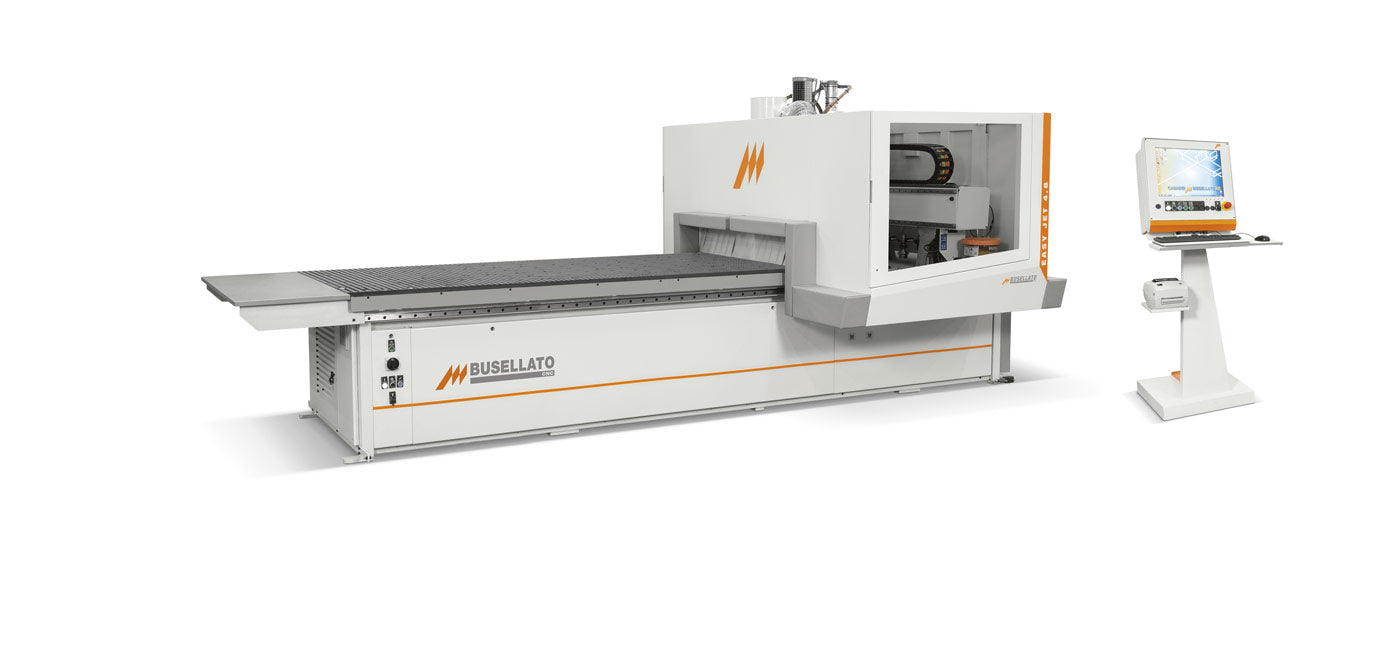

Busellato Easy Jet CNC Machining Center

Description

Compact, Versatile, and High-Performance CNC Machining

The Busellato Easy Jet is a compact, high-precision CNC machining center engineered for flexible production environments. Designed to handle routing, drilling, and nesting applications, the Easy Jet delivers exceptional efficiency, accuracy, and adaptability. Its phenolic multifunction worktable, integrated software, and automation features make it a cost-effective solution for cabinetmakers, furniture manufacturers, and panel processors.

Upgrade Your CNC Machining with the Busellato Easy Jet!

Features

Key Features

• Rigid Machine Structure: Heavy-duty steel frame ensures stability and vibration-free machining.
• Phenolic Multifunction Worktable:
  • 30x30 mm reticular grid for nesting and vacuum cup applications.
  • Swiveling modular cups for versatile material holding.
• Electrospindle Options:
  • Standard 6.6 kW Electrospindle (S6-40%) for reliable performance.
  • Optional 9.5 kW Electrospindle for increased power and efficiency.
  • Optional 15 kW Electrospindle (liquid cooled) for maximum power and efficiency.
• Boring Head Configurations:
  • 7M, 12ML, and 18M versions available to suit different production needs.
  • Integrated X-axis saw unit (120 mm blade) with 18M only.
• Automatic Tool Changer:
  • LINEAR Tool Changer with 8, 10, 11, or 13 positions (varies by model).
• Wave CAD/CAM Software:
  • Intuitive programming interface allows for seamless design and execution.
  • Nesting optimization module available for enhanced material efficiency.
• Dust Extraction System: Integrated suction ports keep the workspace clean.

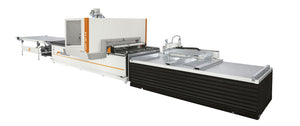

• Nesting Cell with Auto-Loading & Unloading:
  • Panel cleaning system and exit pusher ensure continuous production flow.
  • Vacuum-powered loading arms for effortless material handling.
• Smart Safety Features:
  • Contact-sensitive bumpers prevent accidental impacts.
  • Protective anti-ejection system safeguards operators.

Advantages

✔ Compact Design for Small to Medium Shops: High productivity in a small footprint.
✔ Versatile Applications: Handles solid wood, MDF, laminated panels, and composite materials.
✔ Enhanced Workflow Automation: Auto-positioning clamps, automatic loading/unloading, and nesting optimization.
✔ User-Friendly Interface: Wave CAD/CAM software simplifies programming and reduces errors.
✔ Efficient Material Utilization: Nesting capabilities reduce waste and optimize yield.

Benefits

Business Benefits

• Boost Production Efficiency: Faster cutting and drilling cycles minimize downtime.
• Improve Surface Quality: High-precision machining ensures a superior finish.
• Minimize Labor Costs: Automated loading/unloading speeds up workflow.
• Scalable to Your Needs: Multiple model configurations cater to different levels of production demand.

Technical Data

• Working Areas:
  • X-Axis Travel: 2486 – 4286 mm (varies by model).
  • Y-Axis Travel: 1255 – 2185 mm.
  • Z-Axis Travel: 100 mm.
  • Panel Clearance (Z-Axis): 150 mm.
• Electrospindle Power:
  • Standard: 6.6 kW (S6-40%).
  • Optional: 9.5 kW for higher-performance machining.
  • Optional: 15 kW for highest-performance machining.
• Drilling Head Options:
  • Vertical Spindles: 7-12 [5 – 8 (X-axis), 2 – 4 (Y-axis)].
  • Horizontal Spindles: Available in select configurations.
  • Integrated 120 mm Saw Blade (select models).
• Tool Changer: LINEAR 8 – 13 (varies by model).
• Vacuum Pump Capacity: 250 m³/h – 500 m³/h.
• Machine Dimensions: Varies by model.

Optional Features

• 9.5 kW - 15kW Electrospindle: Increased power for high-performance applications.
• 0°-360° CNC Aggregate Unit: Enables full-angle machining control.
• Pressure Roller System: Holds overlapping panels in place during machining.
• Automatic Tool Length Pre-Setter: Reduces setup time and improves repeatability.
• Belt Conveyor Offloading: Improves throughput by rapidly clearing the table.
• Directional Blowers on the Electrospindle: Automatically blasts particles out of the cutting line during machining
