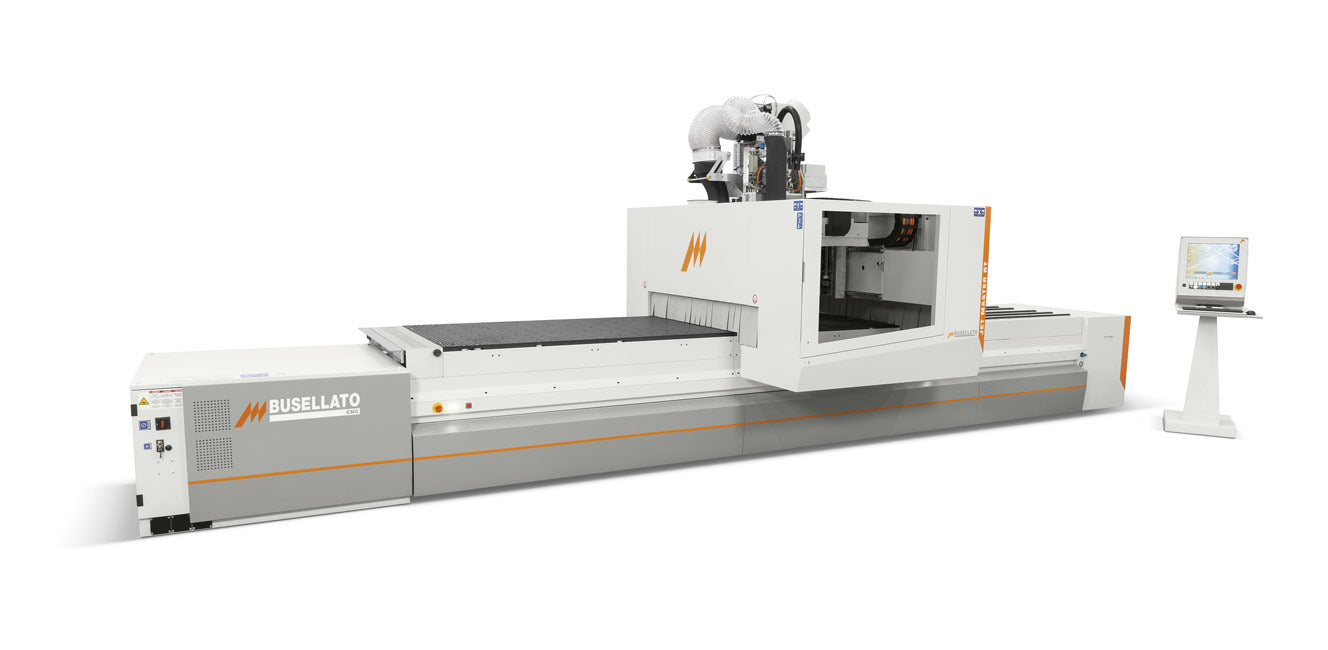

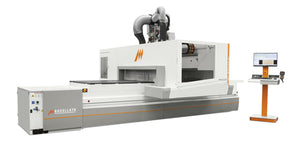

Busellato Jet Master RT CNC Machining Center

Description

High-Performance CNC Nesting for Industrial Production

The Busellato Jet Master RT is a state-of-the-art CNC machining center designed for high-speed nesting, routing, and drilling applications. Built for precision, efficiency, and flexibility, the Jet Master RT is ideal for cabinet manufacturing, furniture production, and architectural millwork. Its robust construction, advanced automation features, and powerful electrospindle options make it the perfect solution for high-production environments.

Upgrade Your CNC Production with the Jet Master RT!

The Busellato Jet Master RT CNC Machining Center is the ultimate solution for high-speed nesting, advanced routing, and efficient drilling applications. Contact us today to find the best configuration for your production needs!

Features

Key Features

• Heavy-Duty Monolithic Frame: Ensures stability and vibration-free operation, even under high workloads.
• Phenolic Multifunction Worktable:
  • High-retention vacuum system for secure material holding.
  • Optimized for nesting, panel processing, and complex part machining.
• Electrospindle Options:
  • 3- and 4-axis electrospindle: Standard 9.5 kW (S6), optional 15 kW (S6) upgrade.
  • 5-axis electrospindle: Standard 10 kW (S6), optional 13.5 kW (S6) upgrade for full 5-axis machining.
• Drilling Unit Options:
  • Multi-spindle boring head for high-efficiency hole drilling.
  • Available with 16 or 24 vertical/horizontal spindles for expanded drilling capabilities.
• Automatic Tool Changer Configurations:
  • RP16/24: Rear rotary tool changer with 16 or 24 positions.
  • BT 16: Y-carriage tool changer for rapid in-process tool swaps.
  • LINEAR T (Optional): Large-dimensioned tool storage with protective cover.
• Advanced Safety System:
  • Available with contact-sensitive bumpers (B-Tech version) or safety mats.

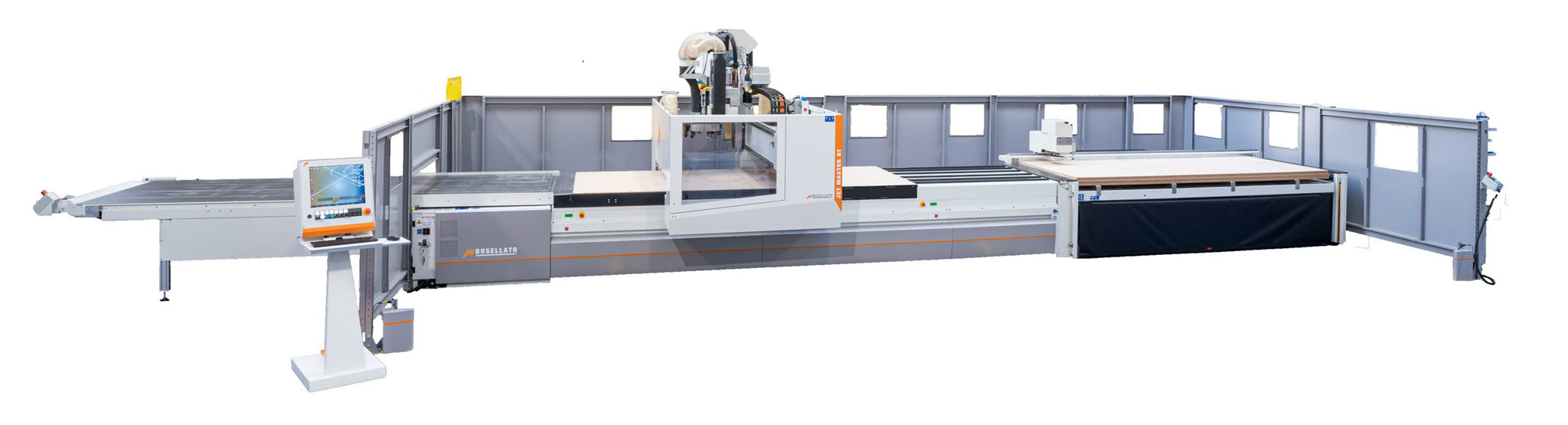

  • Enclosed work area for operator protection and dust control.
• High-Speed Axis Movement: Linear guides with precision servo motors ensure smooth and fast positioning.
• Genesis Evolution Software:
  • Real-time 3D machine visualization for intuitive programming.
  • Compatible with Jet CAD for seamless CAD/CAM integration.
• Panel Thickness Measuring Device (Optional): Automates material thickness detection for precise depth control.

Advantages

✔ Optimized for Nesting Production: High-speed cutting and drilling with minimized waste.
✔ Versatile Application Range: Ideal for solid wood, MDF, laminated panels, plastics, and composite materials.
✔ Efficient Workflow Automation: Auto-positioning, multiple tool changers, and integrated CAD/CAM software.
✔ User-Friendly Control System: Genesis Evolution software simplifies setup and job execution.
✔ Scalable for Future Growth: Configurable with advanced tooling, safety features, and software options.

Benefits

Business Benefits

• Increase Productivity: Faster machining cycles reduce lead times and boost production output.
• Improve Accuracy & Consistency: Advanced motion control and high-precision cutting tools deliver flawless results.
• Reduce Material Waste: Optimized nesting algorithms maximize sheet utilization.
• Minimize Setup Time: Automatic tool changers and workpiece positioning reduce downtime.

Technical Data

Technical Data

• Working Areas:
  • X-Axis Travel: 3115 mm, 3715 mm, or 5515 mm (varies by model).
  • Y-Axis Travel: 1320 mm or 1620 mm.
  • Z-Axis Travel: 180 mm (standard), 250 mm (optional).
• Electrospindle Power:
  • 3- and 4-axis models: 9.5 kW (S6), optional 15 kW (S6).
  • 5-axis models: 10 kW (S6), optional 13.5 kW (S6).
• Drilling Head Options:
  • 16 or 24 vertical/horizontal spindles.
• Tool Changer Configurations:
  • RP16/24: 16- or 24-position rear rotary tool changer.
  • BT 16: Rapid tool change system on Y-carriage.
  • LINEAR T (Optional): Enclosed large-capacity tool storage.
• Safety System Options: B-Tech bumpers or safety mats.
• Machine Dimensions: Varies by model.

Options

Optional Features

• 15 kW Electrospindle: Increased power for high-speed cutting and heavy material processing.
• 5-Axis Machining Capability: Allows for complex contouring and multi-angle cuts.
• Panel Thickness Measuring Device: Automates panel thickness detection for precise depth control.
• LINEAR T Tool Changer: Large tool storage solution for expanded tooling requirements.
• Integrated Nesting Optimization Software: Enhances yield and reduces scrap material.
